OSMODO Side Handle (1/4-20)
Verified Fit
Category
Handles
Compatibility
OSMODO, OSMODO PRO
Difficulty
BEGINNER
Version
v5.0
Files Included
Side Handle v2 (update)STL • 6.1 MBSide Handle 1:4-20 Mount v2STL • 826 KBSide Handle 1:4-20 Mount v2 10mm longerSTL • 826 KBSide Handle Washer v2STL • 1.1 MB
About this design

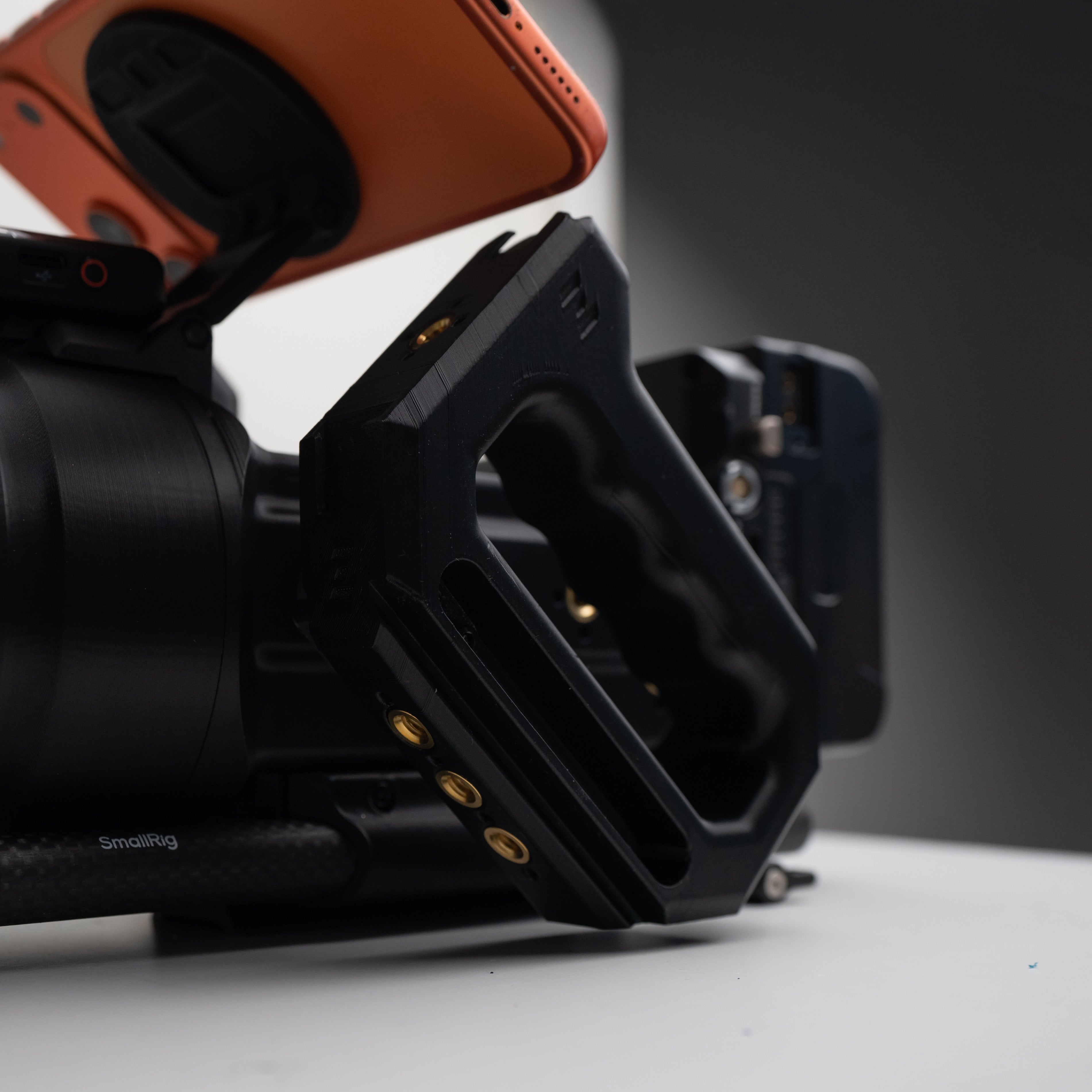

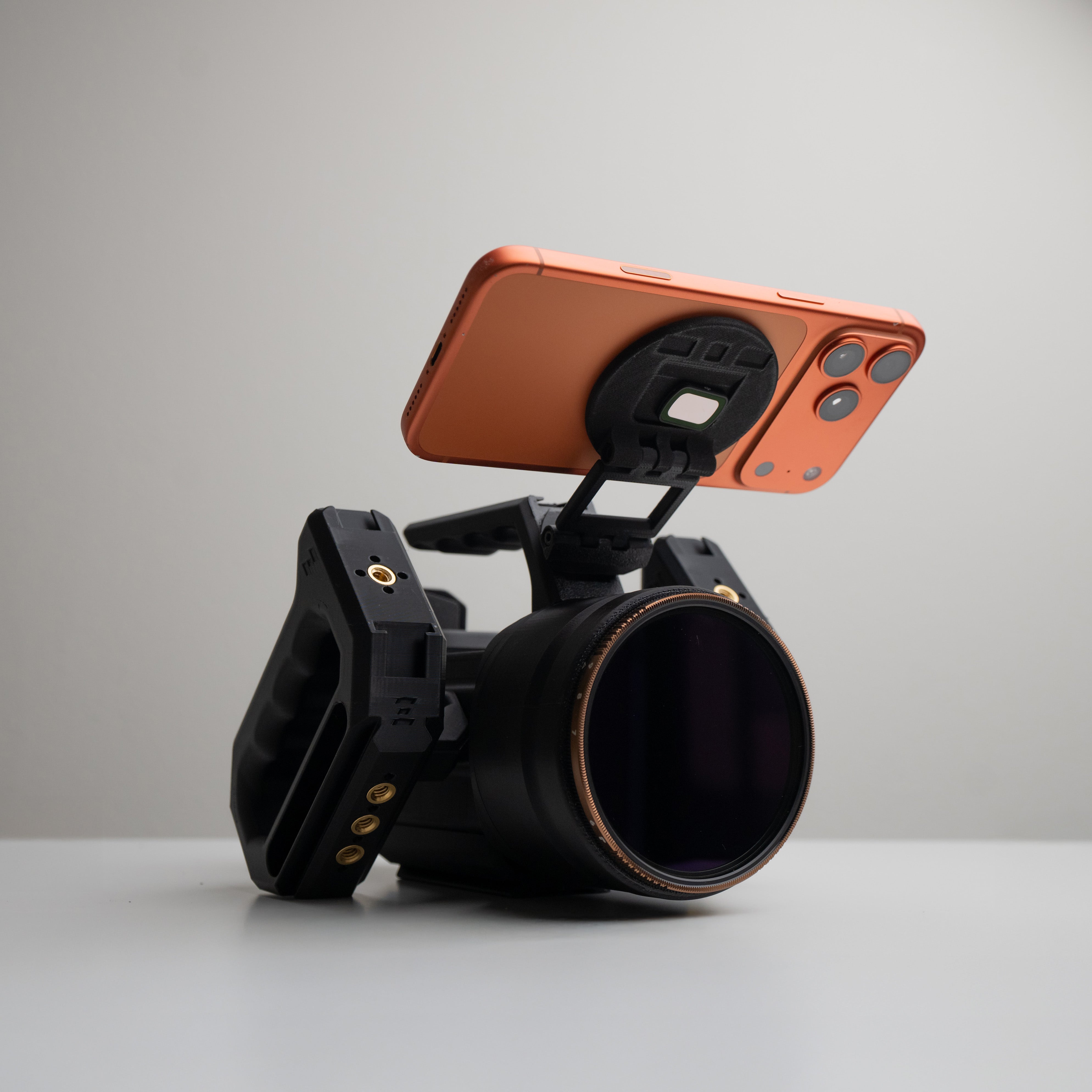

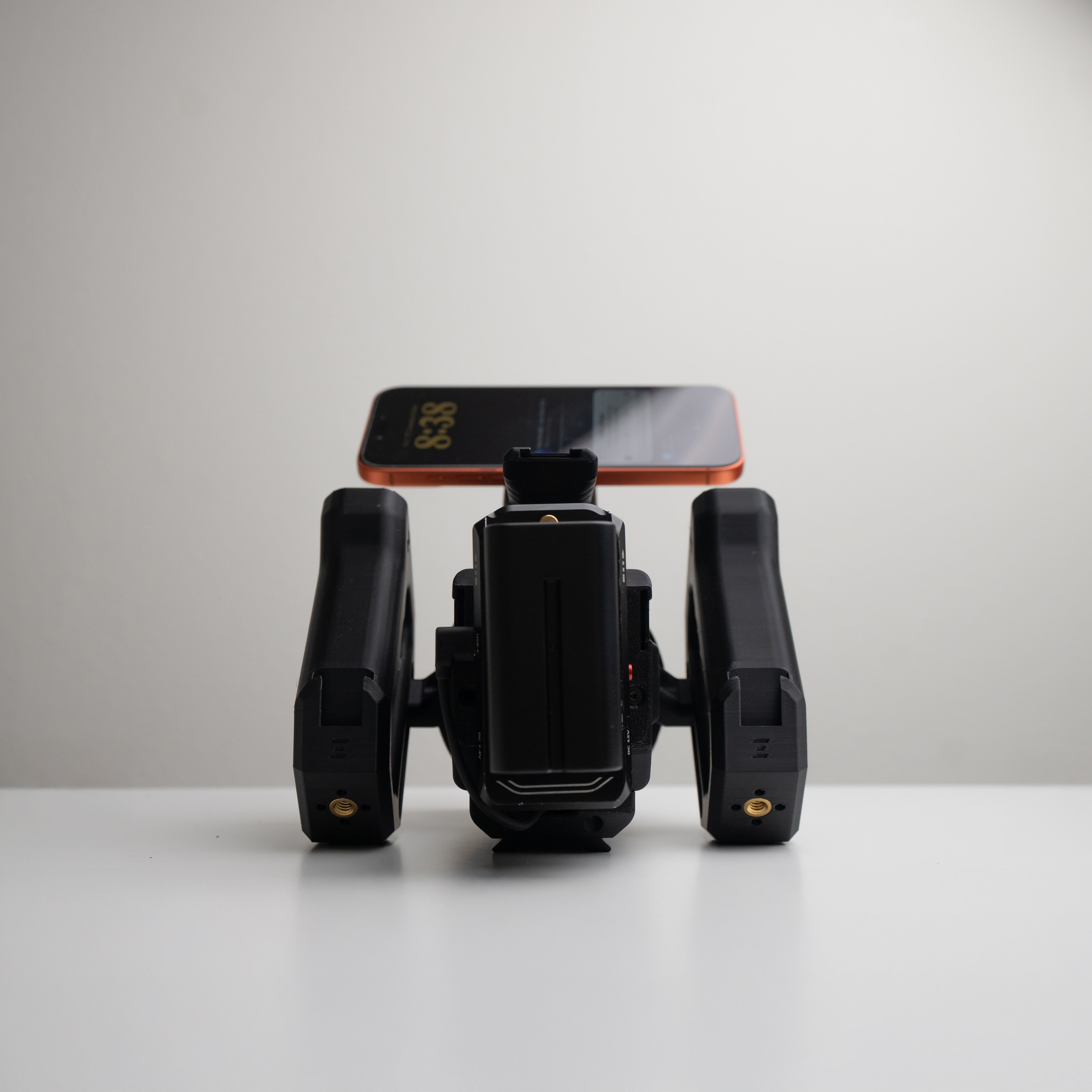

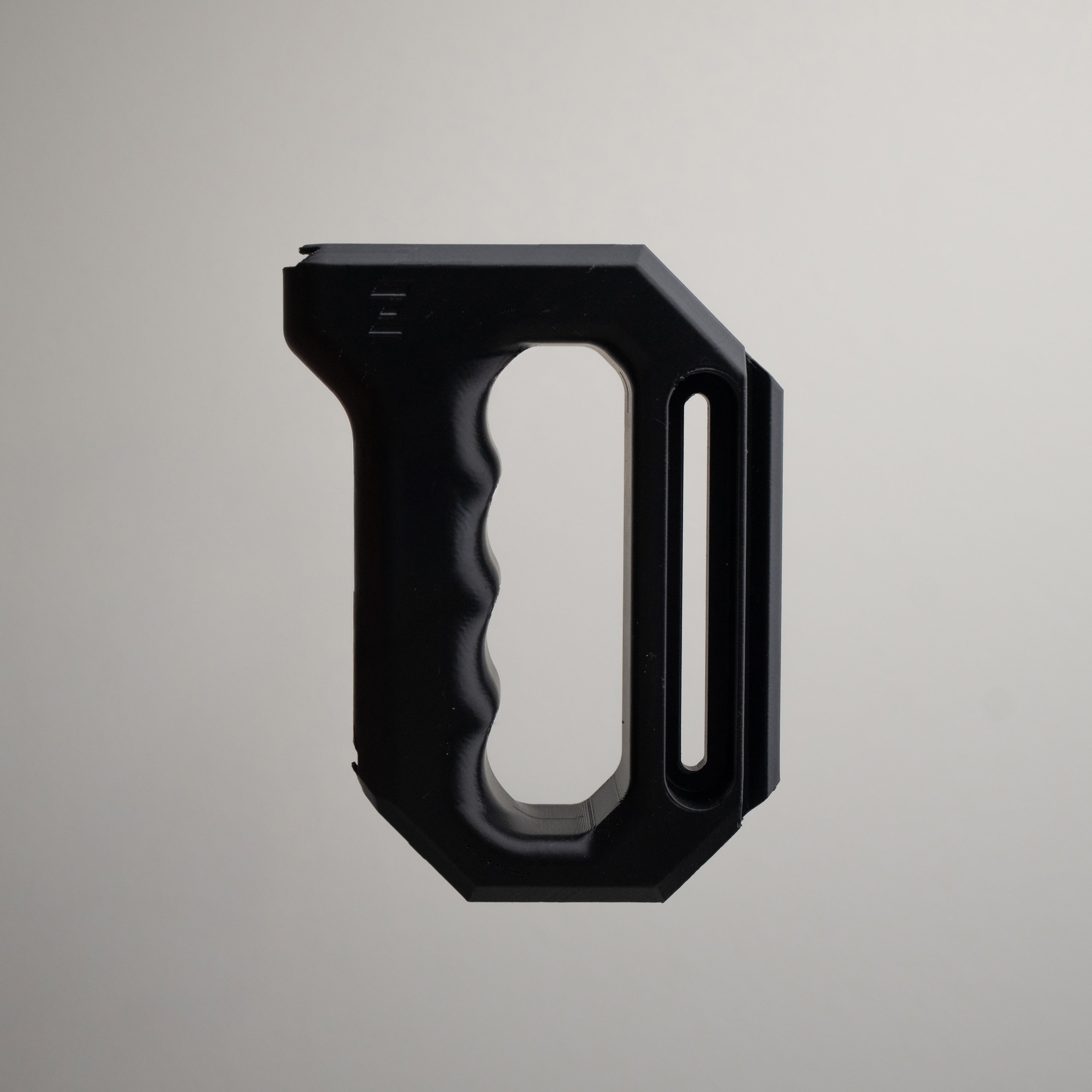

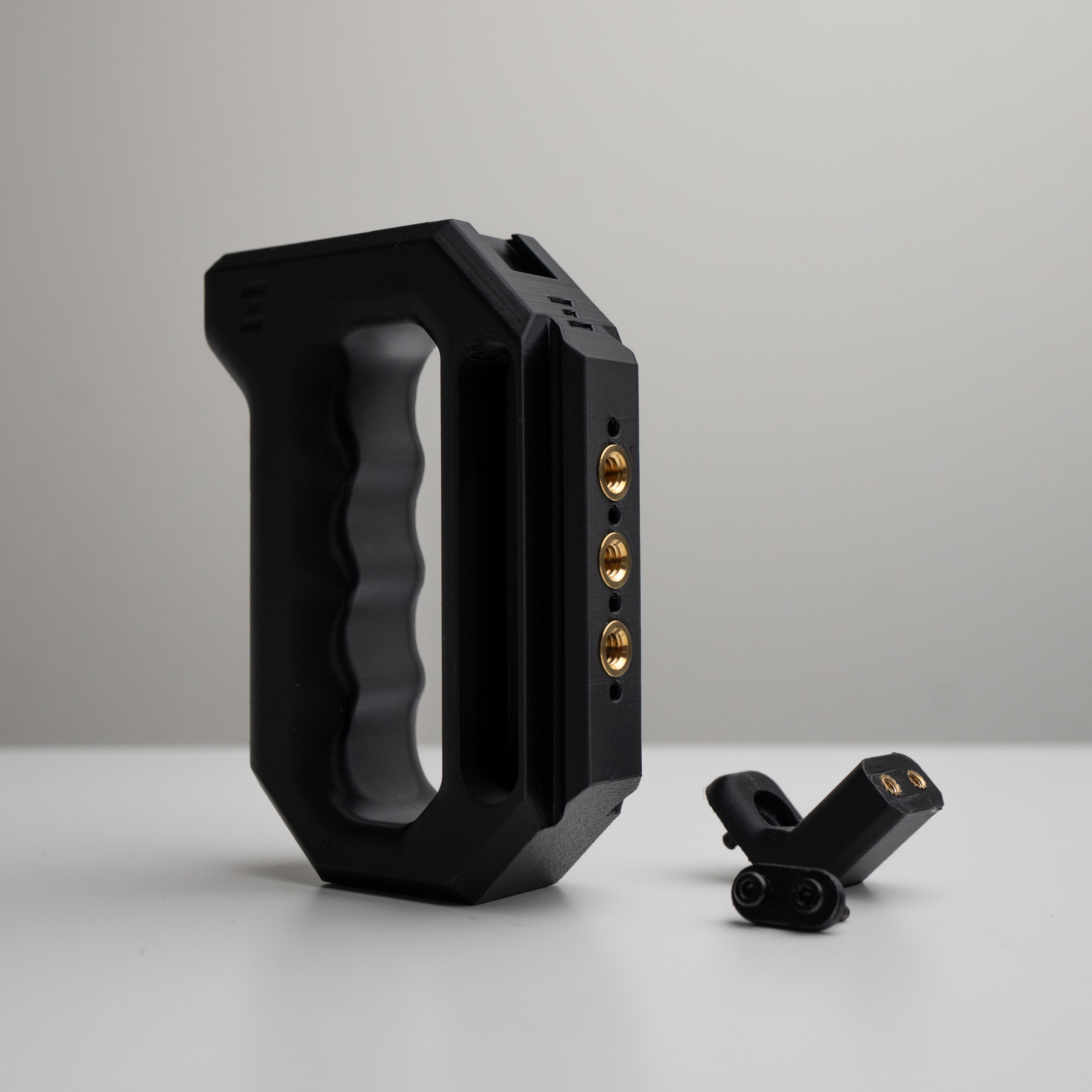

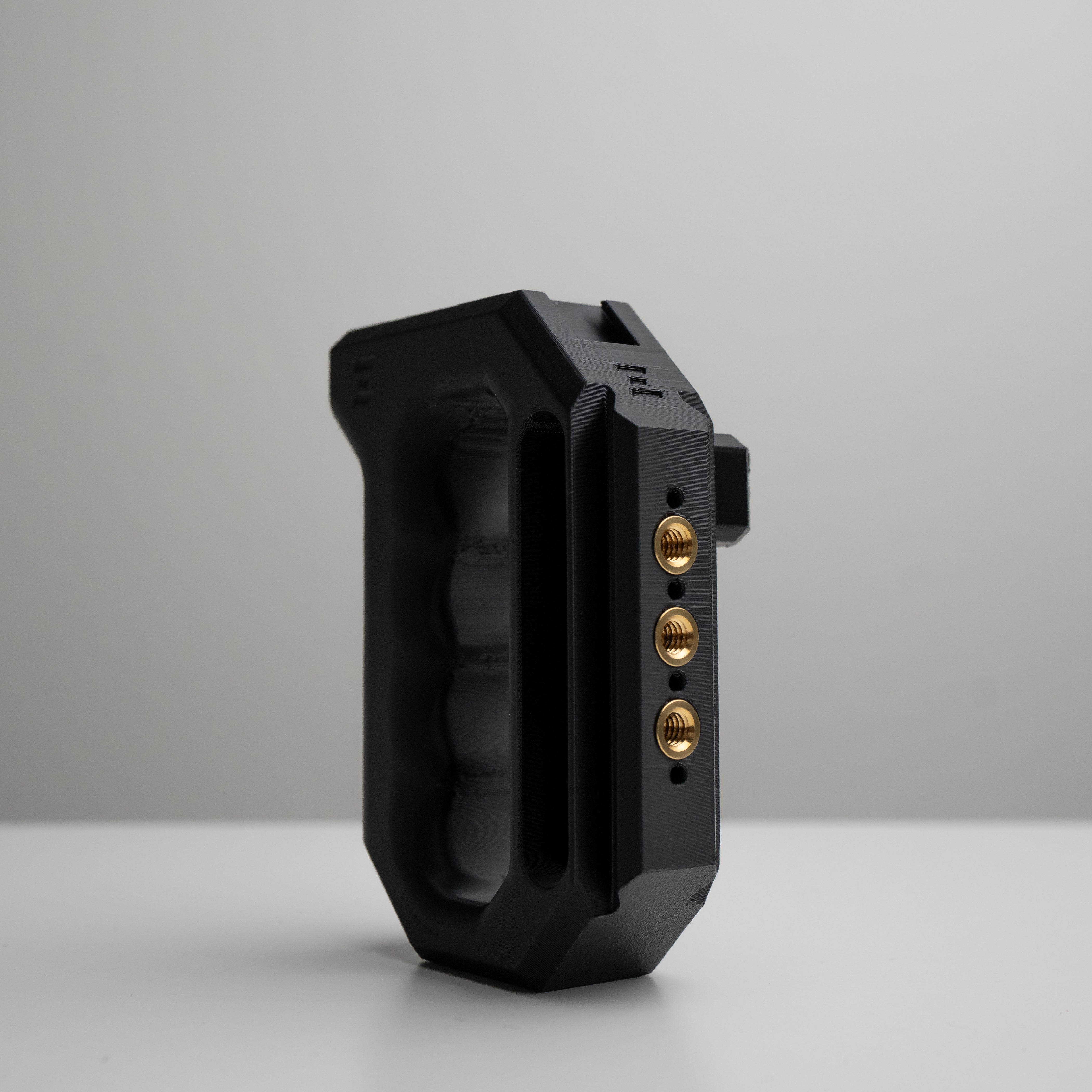

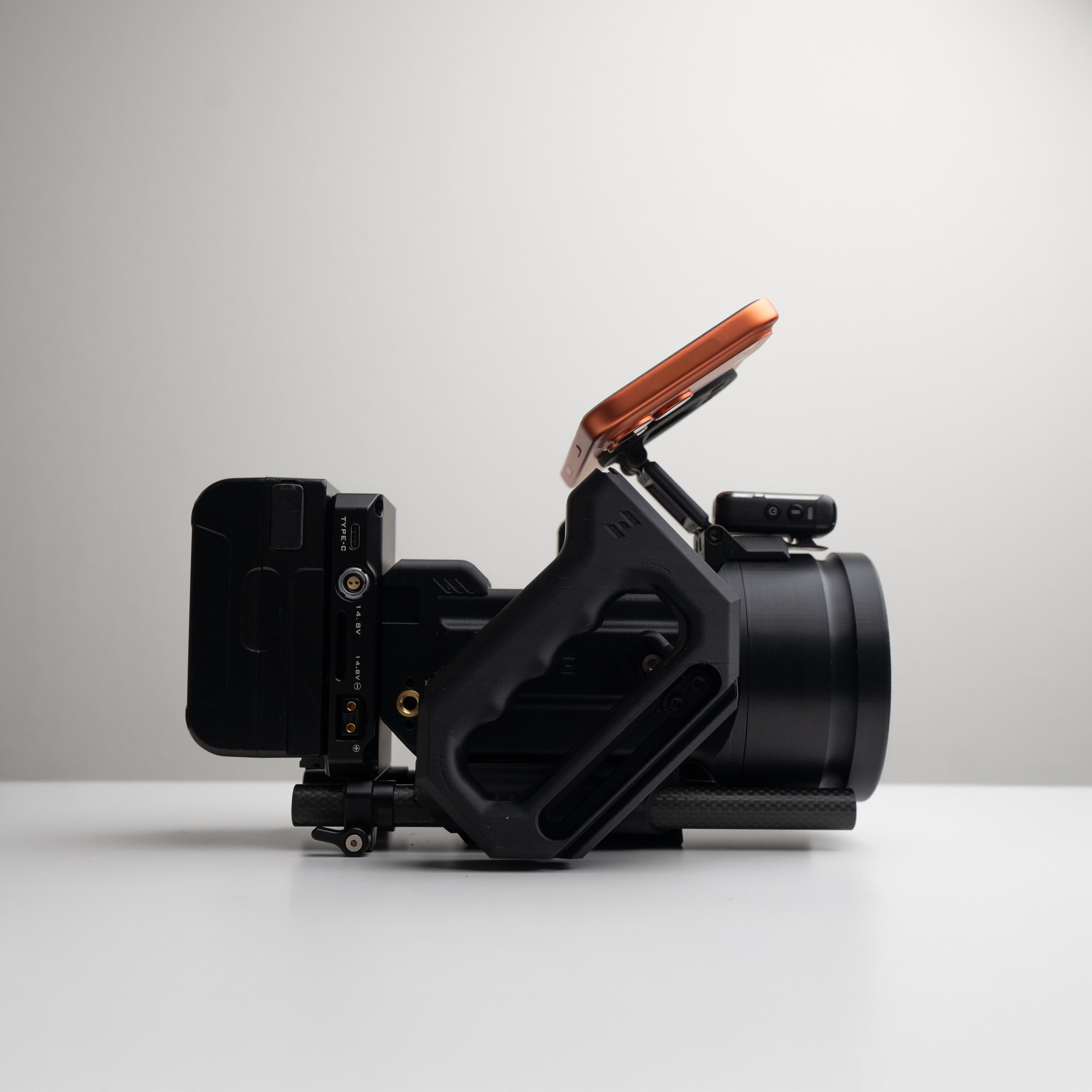

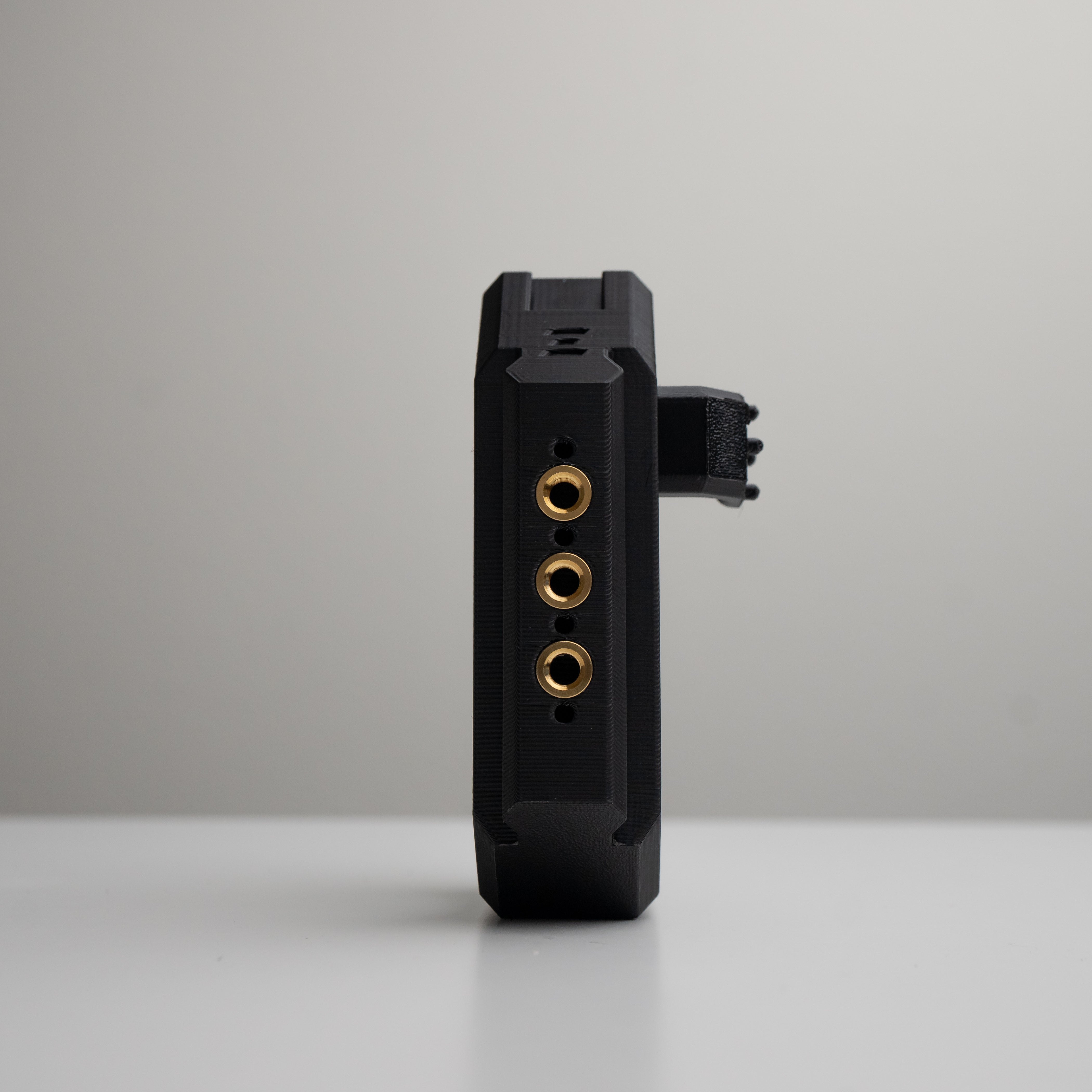

The handle itself is built for accessories: a NATO rail on the front, 3× 1/4-20 ports on the body, a 1/4-20 on top, and triple cold shoes around the handle.
Use m3 heat inserts for the connector. Use m3 screws for washer. 1/4-20 camera screw to connect to 1/4-20 ports
Use m3 heat inserts for the connector. Use m3 screws for washer. 1/4-20 camera screw to connect to 1/4-20 ports
Hardware
Recommended Print Settings
Material:PETG
Infill:30
Supports:normal
Notes
Add supports on angles to prevent it from coming off the bed during printing.
